CX-Line

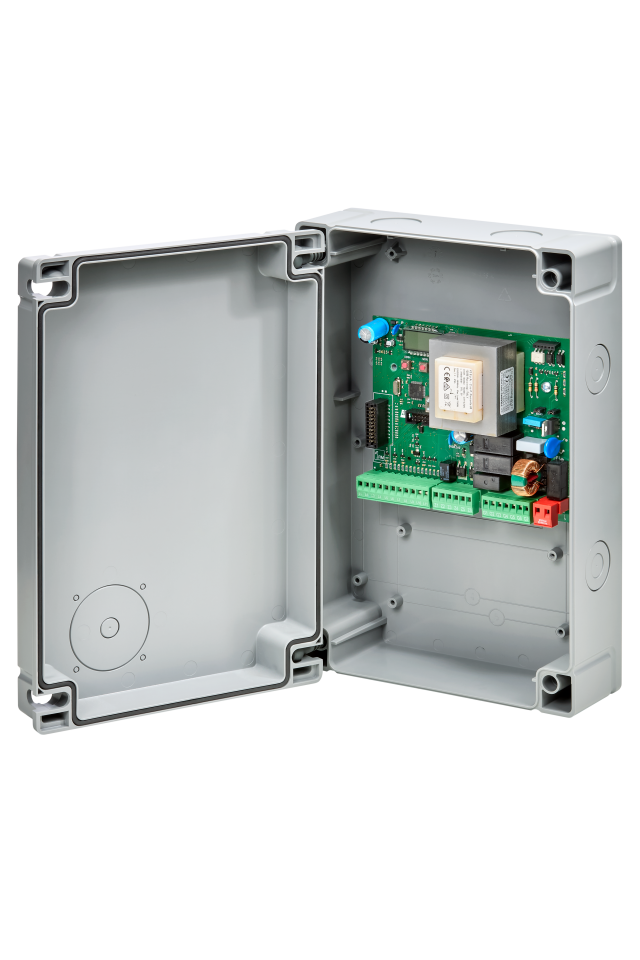

CX EVO4

Code 12Y017

Digital control unit for swing and sliding gates equipped with 1 x 230V motor

Download instructions

cx-evo4

Features

Technical data

Features

230 V Voltage

312 x 210 x 100 mm Dimensions

Characteristics

Programming with three buttons and a display
230V power supply for 1 single-phase motor
Enables precise control of motors with an encoder
USB port for PC connection to manage programming, updates, and diagnostics
programming, firmware updates and diagnostics via software
Connector for low-energy module, enabling significant savings (<0.5 W)
Plug-in adapter for MR2 modular radio receiver
Control pedestrian start/stop with transmitter
Auxiliary channel management from transmitter
230V output for intermittent flashing lights
Safety device test before any opening
Self-learning operating time function
Obstacle detection function
Cycle counter with programmable maintenance alerts
Leaf slow-down function in limit switch area to prevent noisy closures and rebounds
Slow start function during opening (programmable time)
Input status displayed

Data

Supply (Vhz)

230 - 50/60

Maximum power (W)

700

Operating temperature (°C)

-20 ÷ +60

Weight (kg)

1600

Degree of protection (IP)

55

Stand-by absorption (W)

0,45
