Features
15 ㎡ Power
230 V Voltage
378 x 218 x 113 mm Dimensions
113
378 x 218
product
technical sheet and download
DC MEDIUM 1000 24

Characteristics

  • Accurate and safe operation with encoder
  • Control panel with keypad and LCD display
  • Operation during power outage with backup battery
  • Operation with solar power system
  • Plug-in adaptor for modular radio receiver
  • Input for photocells or safety edges
  • Input for an external start and stop button
  • Output for flashing light 24V with intermittence
  • Automatic learning of timings, slowdowns, and forces for both opening and closing phases
  • Obstacle detection function
  • Compliant with new standby ecodesign regulation EU2023/826
  • Wi-Fi module for motor control via app
DC MEDIUM 1000 24
To learn more about operation and installation of the products, download the catalogue the installation guide and all the manuals

Data

Product Data
Code
25Y002
Weight (kg)
7
Maximum door area (sqm)
15
Degree of protection (IP)
20
Operating temperature (C°)
-20 +40
Electrical Data
Supply (Vac - Hz)
230 - 50
Maximum electric power (W)
350
Consumption standby
<0.5
Mechanical data
Maximum speed (cm/s)
12 (opening) 12 (closing). Fast mode: 20 (opening) 20(closing)
Start force (N)
1000
Working cycle (cycles/hour)
30

Dimensions

Facility

1 Actuator
2 Transmitter
3 Guide
4 Control unit
5 Receiving module
A Key switch
B Photocells
C Flashing light with built-in antenna
D Digital radio switch
E Safety edges
Kit
Do you need help to choose the most suitable Able product for you? Follow our guide, begin by choosing the type of application.

Compatible products

Radio Kit

kl-rx-mr-2-433

KL RX MR 2 433

sku 28Y001
description
Kit radio plugin with two remotes 433Mhz
kl-rx-mr-4-433

KL RX MR 4 433

sku 28Y002
description
Kit radio plugin with four remotes 433 MHz
kl-rx-wal-4-433

KL RX WAL 4 433

sku 28Y003
description
Kit radio plugin with two remotes 433Mhz

Related accessories

ax-line-key

AX LINE-KEY

sku
description
Complete range of key switches wired switches or radio switches
garage-door-accessories

Garage Door Accessories

sku
description
tx-toh

TX-TOH

sku
description
Personal Pass Transmitters 433.92 – 868.30 MHz rolling code
px-line-photocells

PX LINE-PHOTOCELLS

sku
description
Full range of photocells for advanced security
ax-wifi01

AX WIFI01

sku 16Y011
description
WIFI module for control panel management via app

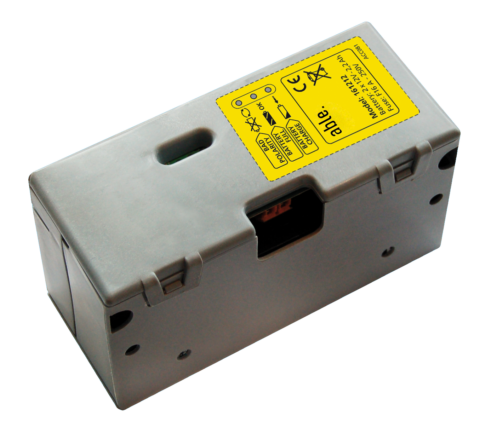

ax-b-pack2
