Features
6 m Power
230 V Voltage
x Dimensions
product
technical sheet and download

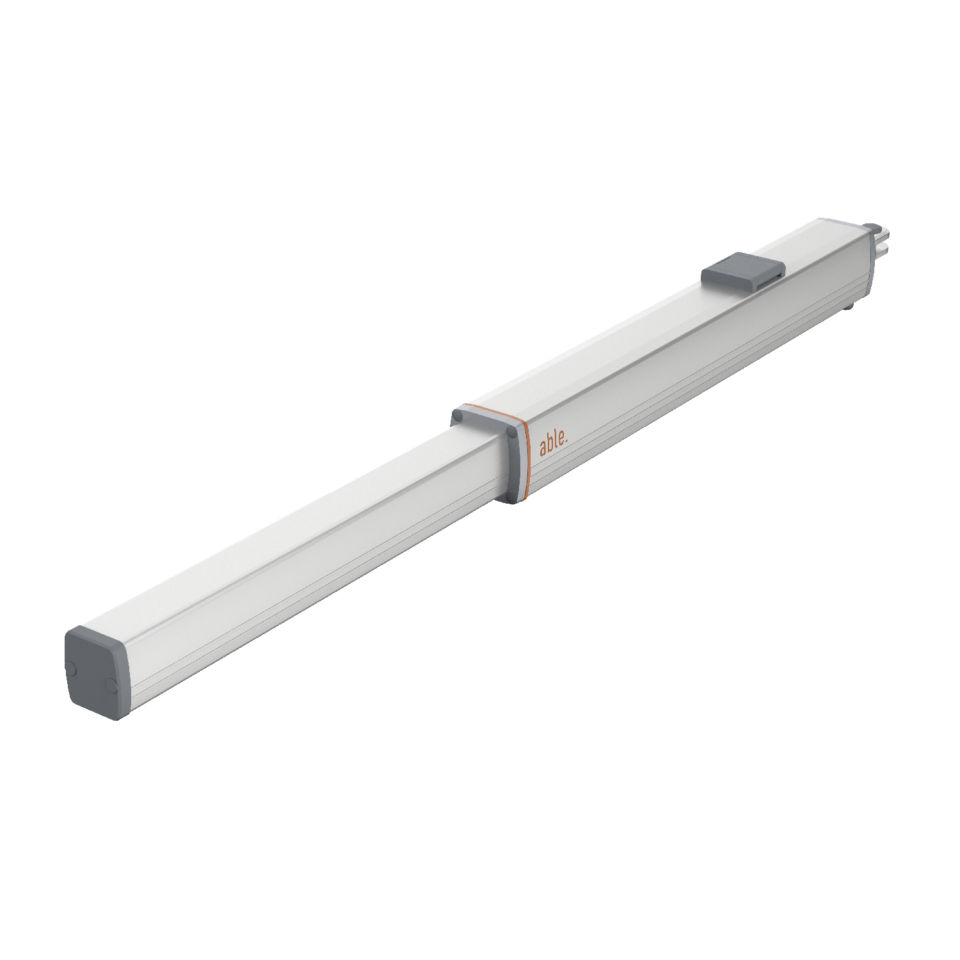

HY LARGE 6000 230R
HY LARGE 6000 230R
To learn more about operation and installation of the products, download the catalogue the installation guide and all the manuals

Data

Product Data
Code
22Y018
Weight (kg)
11
Maximum gate weight (kg)
700
Degree of protection (IP)
65
Operating Temperature (°C)
-10 +90
Electrical Data
Supply (Vac - Hz)
230 - 50
Full load absorption (A)
1
Maximum electric power (W)
230
Mechanical data
Gate speed (m/s)
0.01
Maximum trust (N)
7000
Working cycle (cycles/hour)
continuous

Dimensions

Facility

1 Motore
2 Centrale di comando
3 Trasmettitore
4 Modulo ricevitore
5 Fotocellule
6 Lampeggiante
A Selettore chiave
B Fotocellule a colonna
C Coste di sicurezza
Kit
Do you need help to choose the most suitable Able product for you? Follow our guide, begin by choosing the type of application.

Compatible products

cx-evo2

CX EVO2

sku 12Y002
description
Universal digital control unit for swing or sliding motor automations – Output for 2 motors – 24V
cx-flexy-433

CX FLEXY 433

sku 12Y003
description
Universal smart control unit for automations of sash or sliding motors – Output for 2 motors – 230V – Radio 433MHz

Radio Kit

Related accessories

ax-line-key

AX LINE-KEY

sku
description
Complete range of key switches wired switches or radio switches
tx-toh

TX-TOH

sku
description
Personal Pass Transmitters 433.92 – 868.30 MHz rolling code
px-line-photocells

PX LINE-PHOTOCELLS

sku
description
Full range of photocells for advanced security
other-accessories

Other accessories

sku
description
All the accessories that allow you to customize and give that extra touch to your installation

Need help?
