CX HEAVY1 PB

Code 12Y005

Digital control unit for 230V three-phase motors with INVERTER. Plastic box

Download instructions

cx-heavy1-pb

Features

Technical data

Features

230 V Voltage

312 x 210 x 100 mm Dimensions

Characteristics

Programming with three buttons and a display
Multilingual programming menu through 122×32 pixel graphic display
Power supply for 1x230V three-phase motor (delta connection)
Plug-in adapter for MR2 modular radio receiver
Input for connection of an encoder
Start control, pedal start, stop by transmitter
Three relay outputs programmable as lights, electrolock, warning light, electrobrake or functioning test 12Vdc
230V output for intermittent flashing lights
Test of safety devices before each opening
Precise adjustment of strength and speed during regular stroke and during slowdowns
Self-learning function of the stroke
Obstacle detection function through amperometric sensor
Cycle counter with programmable maintenance alerts
Monitoring of input status using the display
Available in version with only board or housed in a container (made of plastic or metal) with safety disconnecting switch and OPEN, CLOSE and EMERGENCY STOP buttons

Data

Supply (Vhz)

230 - 50 /60

Maximum power (W)

1500

Operating temperature (°C)

-20 ÷ +60

Weight (kg)

4500

Degree of protection (IP)

56

Related accessories

ax-lux

AX LUX

Code 16Y007

Description

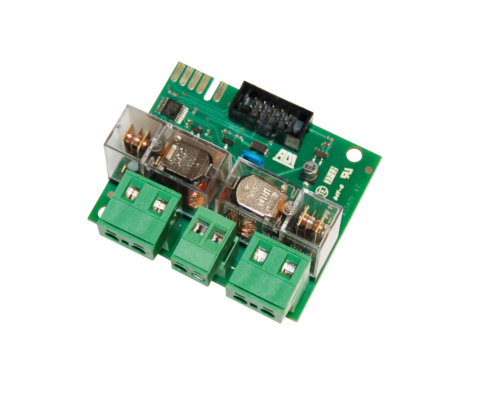

Module for the management of lights, traffic lights or electric brakes

ax-syncro

AX SYNCRO

Code 16Y002

Description

ADI module for synchronised operation of 2 devices

rx-mr-433

RX MR 433

Code 11Y001

Description

433.92 MHz plug-in receiver module
