TM Series Ø45

TM LEX 45-20-15 S

Code 27Y007

Ø45 mm tubular motor with mechanical limit switch, designed for the automation of roller shutters and awnings. Available with standard or V2 head.

Download instructions

Features

Technical data

Features

20 Nm Power

230 V Voltage

410 x 45 mm Dimensions

Quiet motor with 20 Nm torque and 15 rpm speed.
Compact design, ideal for installations with limited space.
Mechanical limit switch for precise adjustment of opening and closing positions.
Suitable for winding tubes from Ø50 mm.
Accessories included: 10×10 mm square adapter, pulley and crown for Ø60 mm octagonal tube, and wall bracket.
Also available with V2 head: TM LEX 45-20-15 (27V007).

Data

Maximum load (kg)

Speed (rpm)

Torque (Nm)

Supply (Vhz)

230-50

Maximum power (W)

145

Rated current (A)

0.64

Cable length (m)

2.5

Degree of protection (IP)

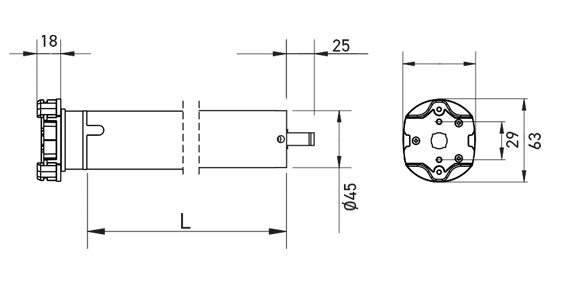

Standard head L 410 mm

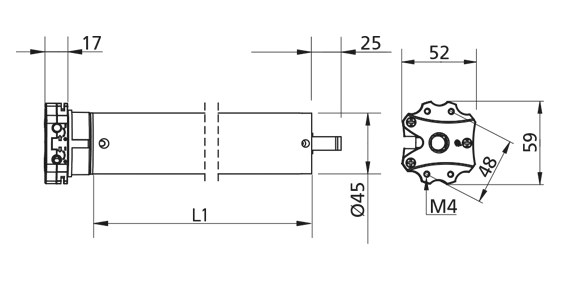

V2 head L1 410 mm

Compatible products

CX CU1 434

Code 12Y713

Description

Miniaturized external control unit for awnings and roller shutters, with built-in 434.15 MHz radio receiver and weather sensor management.

Model detail

CX CU3

Code 12Y715

Description

External control unit for the automation of awnings and roller shutters, with one motor output, weather sensor management and optional 434.15 MHz radio receiver.

Model detail

CX CU4

Code 12Y716

Description

External control unit for the automation of awnings and roller shutters, with two motor outputs for independent or synchronized operation, weather sensor management and optional 434.15 MHz radio receiver.

Model detail

CX DEV-R1 WIFI

Code 12Y709

Description

Wi-Fi miniaturized receiver for the control of single-phase asynchronous motors, compatible with Personal Pass transmitters. Compact and easy to integrate, it enables reliable remote control of shutters, screens, doors and other motorised systems, ensuring efficient operation and seamless integration with Personal Pass solutions.

Model detail

Related accessories

CX DEV-T1 434

Code 12Y701

Description

434.15 MHz miniature mains-powered transmitter for controlling awnings, roller shutters or groups of automations, designed for installation inside standard electrical boxes.

Model detail

CX PRG2

Code 12Y708

Description

Expansion board for controlling two awning or roller shutter motors, with individual or multiple control and relay outputs rated up to 1500 W each.

Model detail

TX PROTEO

Code

Description

434.15 MHz transmitter for awnings and shutters. Available in versions with 1, 4, 6, 12 channels to control one or more automated systems simultaneously.

Model detail
