Features
1000 Kg Power
24 V Voltage
230 x 348 x 372 mm Dimensions
372
230 x 348
product
technical sheet and download

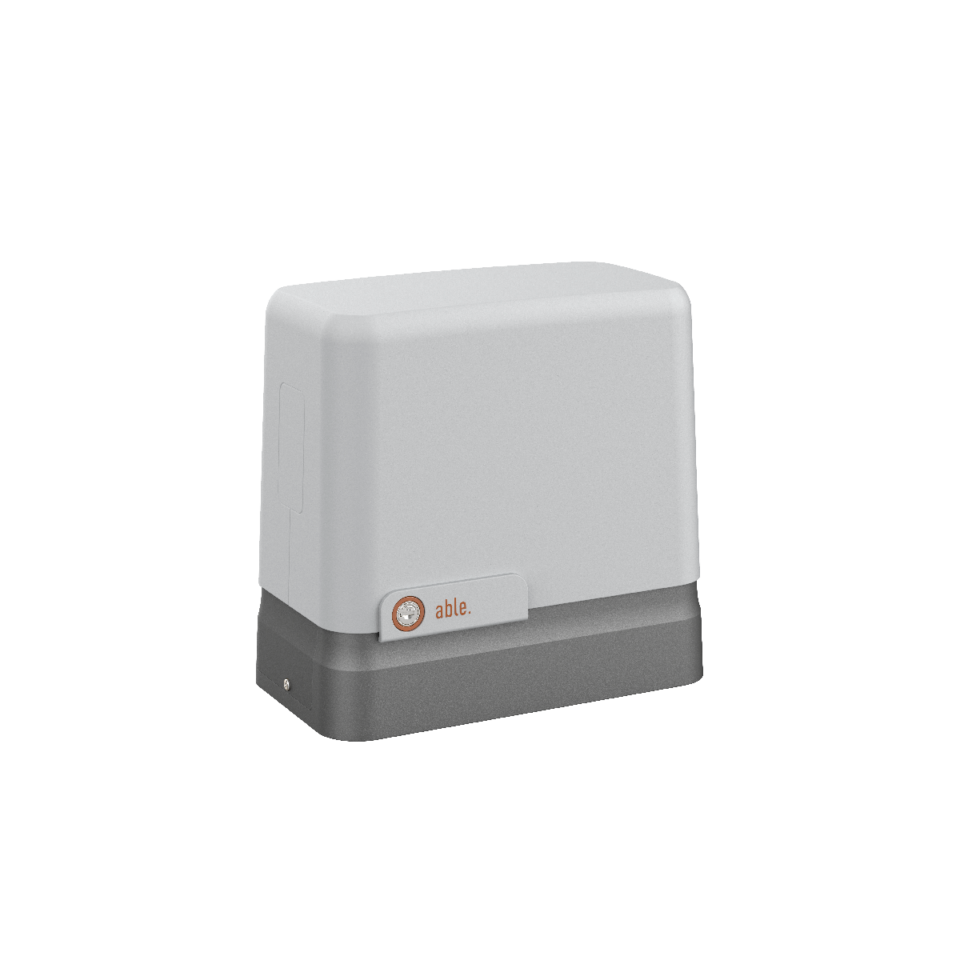

SL MEDIUM 1000 24

Technical Features

24V versions

  • Certified with EPD according to ISO 14025
  • Dedicated compartment for the backup battery
  • Solar energy operation using the ECO-LOGIC system
  • Programmable accelerations and decelerations
  • Operation in the event of a blackout using the buffer battery

Characteristics

  • Integrated digital control unit
  • Painted aluminum casting
  • Precise and safe operation
  • Obstacle detection
  • Self-learning of opening and closure times
  • Synchronized motor operation via SYNCRO module
  • Magnetic limit switch
  • Modular radio receiver plug-in connector
  • 2 inputs for photocells with self-test function
  • 2 inputs for mechanical or resistive safety sensitive edges
  • Courtesy light output
  • ADI connector for optional modules
  • Compliant with EU 2023/826 standby ecodesign regulation
  • 24V auxiliary output always on for activators
  • Stainless lock with secured mechanism
  • Up to 90% reduced electricity consumption
SL MEDIUM 1000 24
To learn more about operation and installation of the products, download the catalogue the installation guide and all the manuals

Data

Product Data
Code
23Y005
Weight (kg)
15.5
Maximum gate weight (kg)
1000
Degree of protection (IP)
44
Operating Temperature (°C)
-20 +55
Electrical Data
Supply (Vac - Hz)
230 - 50
Full load absorption (A)
2
Maximum load of powered accessories at 24 Vdc (W)
12
Consumption Standby
<0.5
Mechanical data
Gate speed (m/s)
0.42
Maximum trust (N)
1000
Working cycle (cycles/hour)
35
Pinion
M4-Z15

Dimensions

Facility

1 Actuator
2 Transmitter
3 Photocells
4 Flashing light with built-in antenna
5 Receiving module
A Digital or Key switch
B Pillar photocells
C Safety edges
D Solar system (only 24V actuators)
F WES transmitters/receiver

Compatible products

Radio Kit

kl-rx-mr-2-433

KL RX MR 2 433

sku 28Y001
description
Kit radio plugin with two remotes 433Mhz
kl-rx-mr-4-433

KL RX MR 4 433

sku 28Y002
description
Kit radio plugin with four remotes 433 MHz
kl-rx-wal-4-433

KL RX WAL 4 433

sku 28Y003
description
Kit radio plugin with two remotes 433Mhz
