TL MEDIUM 500 230
TL-Series
TL MEDIUM 500 230
SKU
22Y006

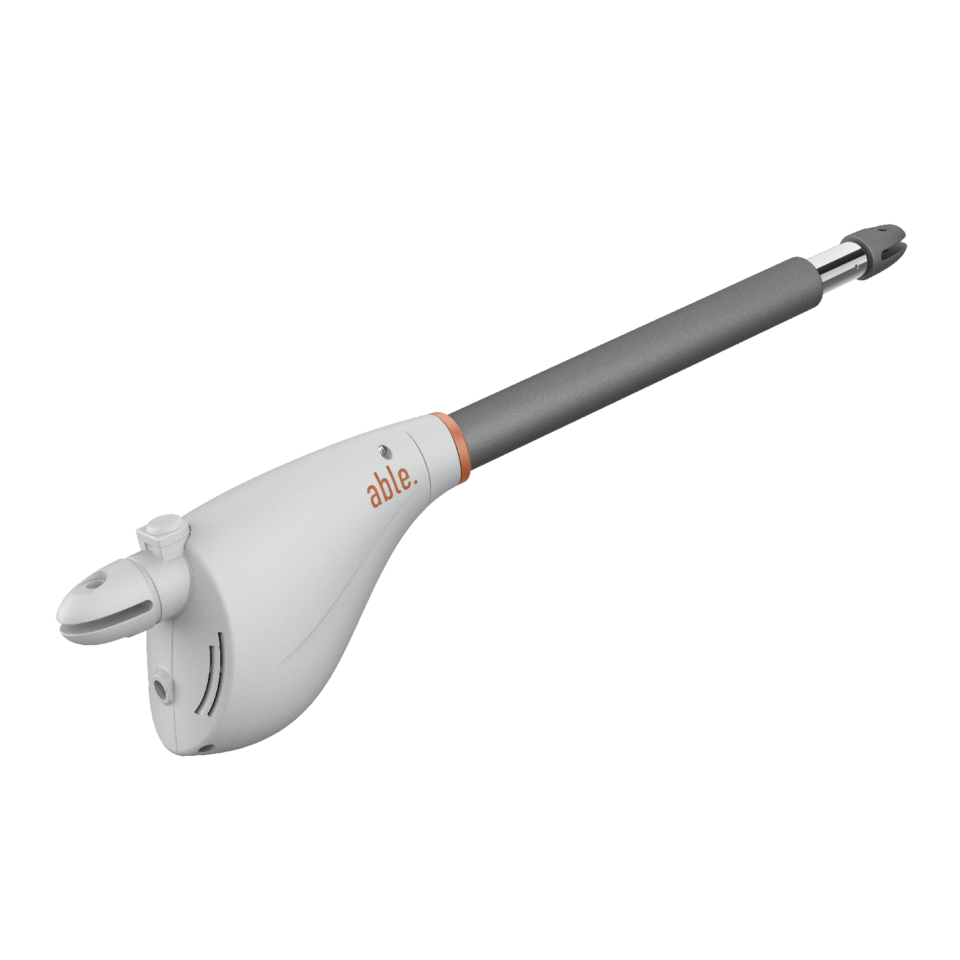

230V irreversible electromechanical actuator with telescopic arm actuator for swing gates with leaves up to 5 m
download technical sheet
download manuals
Features
5 m _en
Power
230 V
Voltage
120 x 4000 x 177 mm
Dimensions
177
120 x 4000
product
technical sheet and download
TL MEDIUM 500 230
Characteristics
Single version for both right
and left leaves
Practical release system
TL MEDIUM 500 230
To learn more about operation and installation of the products, download the catalogue the installation guide and all the manuals
Data
Product Data
Code
22Y006
Weight (kg)
7.1
Maximum gate weight (kg)
500
Degree of protection (IP)
44
Operating Temperature (°C)
-30 +50
Electrical Data
Supply (Vac - Hz)
230 - 50
Full load absorption (A)
1.2
Maximum load of powered accessories at 24 Vdc (W)
250
Mechanical data
Gate speed (m/s)
0,016
Maximum trust (N)
2300
Working cycle (cycles/hour)
17
Dimensions
Facility
1
Actuator
2
Transmitter
3
Photocells
4
Flashing light with built-in antenna
5
Control unit
6
Receiving module
A
Digital or key switch
B
Pillar photocells
C
Safety edges
Kit
